Last night me and my girlfriend were going to face off in Guitar Hero. However, my PS2 just froze while trying to read the disc. After about 4 minutes it said Disc Read Error. It had been getting this way for a while. It would take forever to read the game disc and it would sometimes sit forever at the Browser/System Configuration screen. The unit is 8 years old so I would imagine some filth has built up on the disc reading laser lens inside of it. I decided to clean it out to fix this problem. Here’s how it’s done:
Supplies:
Cotton swab
Small (micro) Phillips head screwdriver
Standard Phillips head screwdriver
Flat head screwdriver
Canned air (optional)
1. Remove all peripherals from the Playstation 2. Discs, memory cards, controllers and modems.
2. Flip the unit on it’s top. 4 rubber feet and 4 square plastic coverings need to be removed from the bottom of the unit.
3. Remove the coverings using a flat head screwdriver. Then remove all of the screws using the standard Phillips screwdriver.

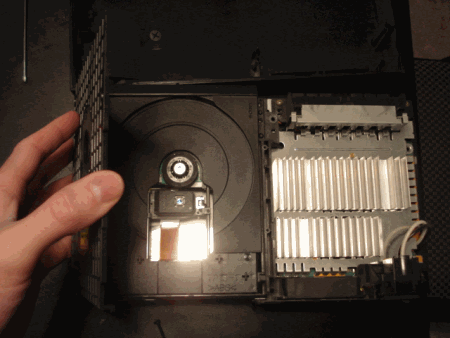

4. Flip the PS2 back on it’s right side. Remove the cover carefully, angling it down toward the front of the unit and flipping it over. Careful, there is a ribbon cable attached on the front side.

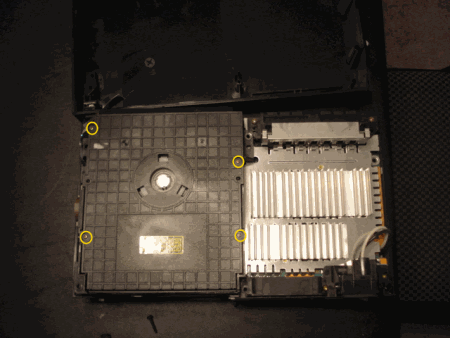

5. After the cover is removed, the top of the disc drive is revealed. The top of it must be removed with a small screw driver. Remove the 4 screws to it.
6. Carefully remove the top to the disc drive, and the inside is exposed along with the disc reading lens.
7. Using a damp cotton swab, gently clean the disc reading laser lens.
8. To finish things off you may want to use some canned air to clean out other parts inside of the unit. Put the PS2 back together and it will read discs just like it did when you first purchased it.
You Might Also Like
Outlook: Error "An OLE registration error occurred.…
Fix "An unexpected error is keeping you from copying…
What Should I Use to Clean My Smartphone?
How to Request a Read Receipt in Gmail
What is a Windows Clean Boot and How to Perform One
Kindle Fire: How to Transfer and Read PDF Files
How to Read Nook eBooks On Kindle Fire
How to Easily Read Twitter Threads Like a Blog Post
Dart says
Super quick fix. Back up and running in perfect order. Thank you.
Sancho25 says
You forgot one thing. You have to open the disc tray while the system is open, unplug and clean the underside of the lens and the reflective mirror under it. This is the biggest culprit. I am surprised more people haven’t included this important step in repair pages.
Mark says
Sounds good but not the answer! I’ve cleaned the laser used to read PlayStation 2 games now it only reads PlayStation 1 and music discs it will not play DVDs and it will not play PlayStation 2 games. I’ve also manipulated my big PlayStation 2 to where I can get a hex wrench into the gear that adjust the laser. My machine used to load the game before the browser screen even came up. But now no matter how much I adjust the gear it doesn’t work for PlayStation 2 games.
Flea says
Thanks a lot! Was stressing out, had my PS2 since it got out and suddenly just stopped, but it worked right after I tried this!
Now I can go all over my Final Fantasy’s again!! ^^
Jon says
Thanks bro good instructions! Easier than I thought. I finally got Killzone to work.
Lionel says
Mitch! u r a STAR!! : )
Seb says
Awesome thing, don’t hesitate trying it, it’s easy and everything will work again ;)
BP says
It took 8 minutes to load a Guitar Hero song until I found this link. I cleaned the lens and it works like a charm – no waiting!!!
THANKS!!!
ammar says
i did all of that but now it dosnt read the disk
kratty says
I did all that,didn’t need to,just stand ps2 player on left end,believe it or not it works perfect now
